UbiQuiti

Ubiquiti UniFi Dream Router 5G Max - Router - WLAN - UDR-5G-MAX

1,000.1 Gbps - Number of ports: - VPN - Ethernet - Power over Ethernet - UMTS (WCDMA) - RJ-45
SKU: UDR-5G-MAX
Condition:
Overview:
Ubiquiti UniFi Dream Router 5G Max - Router - WLAN - 1,000.1 Gbps - Number of ports: - VPN - Ethernet - Power over Ethernet - UMTS (WCDMA) - RJ-45

Popular in this category

NOTE: The information below is provided for your convenience only, accuracy of specifications cannot be guaranteed. But if necessary, please verify with us before purchasing. Data provided by 1 World Sync

General
Device Type
Wireless router - 4-port switch (integrated)
Enclosure Type
Desktop
Connectivity Technology
Wireless, wired
Data Link Protocol
10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Frequency Band
2.4 GHz / 5 GHz / 6 GHz
Data Transfer Rate
2.3 Gbps
Performance
IDS/IPS throughput: 2.3 Gbps Maximum data rate (6 GHz): 5.7 Gbps Maximum data rate (5 GHz): 4.3 Gbps Maximum data rate (2.4 GHz): 688 Mbps 5G NSA downstream: 3.4 Gbps 5G NSA upstream: 560 Mbps 5G SA downstream: 1.8 Gbps 5G SA upstream: 650 Mbps
Capacity
Number of UniFi supported devices: 30+ Number of concurrent clients: 300+ Maximum cameras: 8 IPS signatures: 20000 BSSIDs per radio: 4
MAC Address Table Size
2000 entries
Network / Transport Protocol
L2TP
Routing Protocol
OSPF
Encryption Algorithm
TLS, WPA-PSK, WPA-Enterprise, WPA, WPA2, WPA3
Authentication Method
RADIUS, RADSEC
Features
Ad blocking, content filtering, DPI & traffic identification, IPS, SPIF, zone-based firewall advanced filtering, IPSec support, SD-WAN support, L2TP VPN server, OpenVPN client, VPN Server, WireGuard, multi-WAN load balancing, Advanced Quality of Service (QoS), DNAT support, mDNS-SD support, SNAT support, Internet quality, outage reporting, 2x2 MIMO 2.4GHz, 2x2 MIMO 5GHz, 2x2 MU-MIMO 6Ghz, eSIM support, reset button, 15.4 W PoE power budget, polycarbonate enclosure, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), Bluetooth management
Compliant Standards
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, Wi-Fi CERTIFIED 7, PTCRB, GCF
Processor
1 x ARM Quad Core A53 1.5 GHz
RAM
3 GB
Built-in Devices
4.7" touch screen display, microSD card reader
Status Indicators
Status, SFP+, system
Communications
Type
Wireless cellular modem
Mobile Communication Protocol
LTE Cat4, 5G NR, UMTS
Generation
3G, 4G, 5G
Cellular Band
UMTS B1, UMTS B19, UMTS B2, UMTS B4, UMTS B5, UMTS B8, 5G NR NSA n1, 5G NR NSA n2, 5G NR NSA n3, 5G NR NSA n5, 5G NR NSA n7, 5G NR NSA n8, 5G NR NSA n12, 5G NR NSA n13, 5G NR NSA n14, 5G NR NSA n18, 5G NR NSA n20, 5G NR NSA n25, 5G NR NSA n26, 5G NR NSA n28, 5G NR NSA n29, 5G NR NSA n30, 5G NR NSA n38, 5G NR NSA n40, 5G NR NSA n41, 5G NR NSA n48, 5G NR NSA n66, 5G NR NSA n70, 5G NR NSA n71, 5G NR NSA n75, 5G NR NSA n76, 5G NR NSA n77, 5G NR NSA n78, 5G NR NSA n79, LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B18, LTE B19, LTE B20, LTE B21, LTE B25, LTE B26, LTE B28, LTE B29, LTE B30, LTE B32, LTE B34, LTE B38, LTE B39, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B66, LTE B71
Internet of Things (IoT)
Internet of Things (IoT) Compatible
Yes
Communications Technology
LTE Cat 4
Expansion / Connectivity
Interfaces
LAN: 3 x 100Base-TX/1000Base-TX/2.5GBase-T - RJ-45 WAN / LAN: 1 x 2.5G Gigabit Ethernet - RJ-45 WAN: 1 x 10Gb Ethernet - SFP+
Expansion Slots
3 (total) / 3 (free) x Nano-SIM 1 microSD
Aerial
Aerial
Internal
Power
Power Device
External power adapter - 15 watt
Voltage Required
AC 100-240 V
Miscellaneous

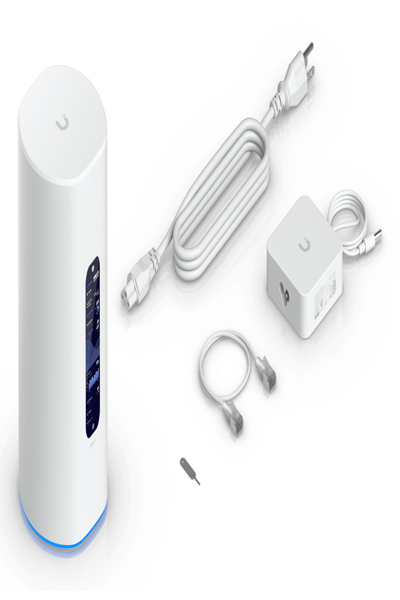

Included Accessories
Power cable, SIM card ejector
Cables Included
1 x network cable
Dimensions & Weight
Width
11 cm
Depth
11 cm
Height
25 cm
Weight
1.4 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95% (non-condensing)
Compatibility Information
Designed For
P/N: UACC-AOC-SFP10-5M, UACC-CM-RJ45-MG, UACC-DAC-SFP10-0.5M
Ident
Manufacturer ID
UDR-5G-MAX
EAN/UPC
0810177162223

Ubiquiti UniFi Dream Router 5G Max - Router - WLAN - 1,000.1 Gbps - Number of ports: - VPN - Ethernet - Power over Ethernet - UMTS (WCDMA) - RJ-45





User Rating

0.00 average based on 0 reviews.

Simply add the product into cart and go to checkout page and pay there with secure payment methods.

You can always ask us over email or phone to confirm the STOCK Status and Stock QTY.

After you place your order, our team will confirm this and will process it to further warehouse team. Each order has handling to processing and then dispatching timeline. Deliveries takes 4-5 days and we always ship with UPS

Our team is always at your service to help you with after sale enquiries and facilitating you with installations, configurations and with detailed technical support.

We sell genuine and original products, sourced directly from various distributors and manufacturers. We provide the standard warranty that comes with each product and fully handle RMA and warranty claims according to standard procedures.

We accepts returns within 14 days only if items are unused, in original packaging, not opened and not excluded (e.g., software, licenses, custom goods). Refunds are issued after inspection; return shipping is the customer's responsibility.

Your data and payment are 100% secure with us. We offer safe payment methods on our checkout page to ensure a smooth purchasing experience. Payments areprocessed by our parent company, “FF Detaljhandel AB”

General
Device Type
Wireless router - 4-port switch (integrated)
Enclosure Type
Desktop
Connectivity Technology
Wireless, wired
Data Link Protocol
10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Frequency Band
2.4 GHz / 5 GHz / 6 GHz
Data Transfer Rate
2.3 Gbps
Performance
IDS/IPS throughput: 2.3 Gbps Maximum data rate (6 GHz): 5.7 Gbps Maximum data rate (5 GHz): 4.3 Gbps Maximum data rate (2.4 GHz): 688 Mbps 5G NSA downstream: 3.4 Gbps 5G NSA upstream: 560 Mbps 5G SA downstream: 1.8 Gbps 5G SA upstream: 650 Mbps
Capacity
Number of UniFi supported devices: 30+ Number of concurrent clients: 300+ Maximum cameras: 8 IPS signatures: 20000 BSSIDs per radio: 4
MAC Address Table Size
2000 entries
Network / Transport Protocol
L2TP
Routing Protocol
OSPF
Encryption Algorithm
TLS, WPA-PSK, WPA-Enterprise, WPA, WPA2, WPA3
Authentication Method
RADIUS, RADSEC
Features
Ad blocking, content filtering, DPI & traffic identification, IPS, SPIF, zone-based firewall advanced filtering, IPSec support, SD-WAN support, L2TP VPN server, OpenVPN client, VPN Server, WireGuard, multi-WAN load balancing, Advanced Quality of Service (QoS), DNAT support, mDNS-SD support, SNAT support, Internet quality, outage reporting, 2x2 MIMO 2.4GHz, 2x2 MIMO 5GHz, 2x2 MU-MIMO 6Ghz, eSIM support, reset button, 15.4 W PoE power budget, polycarbonate enclosure, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), Bluetooth management
Compliant Standards
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, Wi-Fi CERTIFIED 7, PTCRB, GCF
Processor
1 x ARM Quad Core A53 1.5 GHz
RAM
3 GB
Built-in Devices
4.7" touch screen display, microSD card reader
Status Indicators
Status, SFP+, system
Communications
Type
Wireless cellular modem
Mobile Communication Protocol
LTE Cat4, 5G NR, UMTS
Generation
3G, 4G, 5G
Cellular Band
UMTS B1, UMTS B19, UMTS B2, UMTS B4, UMTS B5, UMTS B8, 5G NR NSA n1, 5G NR NSA n2, 5G NR NSA n3, 5G NR NSA n5, 5G NR NSA n7, 5G NR NSA n8, 5G NR NSA n12, 5G NR NSA n13, 5G NR NSA n14, 5G NR NSA n18, 5G NR NSA n20, 5G NR NSA n25, 5G NR NSA n26, 5G NR NSA n28, 5G NR NSA n29, 5G NR NSA n30, 5G NR NSA n38, 5G NR NSA n40, 5G NR NSA n41, 5G NR NSA n48, 5G NR NSA n66, 5G NR NSA n70, 5G NR NSA n71, 5G NR NSA n75, 5G NR NSA n76, 5G NR NSA n77, 5G NR NSA n78, 5G NR NSA n79, LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B18, LTE B19, LTE B20, LTE B21, LTE B25, LTE B26, LTE B28, LTE B29, LTE B30, LTE B32, LTE B34, LTE B38, LTE B39, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B66, LTE B71
Internet of Things (IoT)
Internet of Things (IoT) Compatible
Yes
Communications Technology
LTE Cat 4
Expansion / Connectivity
Interfaces
LAN: 3 x 100Base-TX/1000Base-TX/2.5GBase-T - RJ-45 WAN / LAN: 1 x 2.5G Gigabit Ethernet - RJ-45 WAN: 1 x 10Gb Ethernet - SFP+
Expansion Slots
3 (total) / 3 (free) x Nano-SIM 1 microSD
Aerial
Aerial
Internal
Power
Power Device
External power adapter - 15 watt
Voltage Required
AC 100-240 V
Miscellaneous
Included Accessories
Power cable, SIM card ejector
Cables Included
1 x network cable
Dimensions & Weight
Width
11 cm
Depth
11 cm
Height
25 cm
Weight
1.4 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95% (non-condensing)
Compatibility Information
Designed For
P/N: UACC-AOC-SFP10-5M, UACC-CM-RJ45-MG, UACC-DAC-SFP10-0.5M
Ident
Manufacturer ID
UDR-5G-MAX
EAN/UPC
0810177162223

$ 813.99
external stock
3-5 working days
