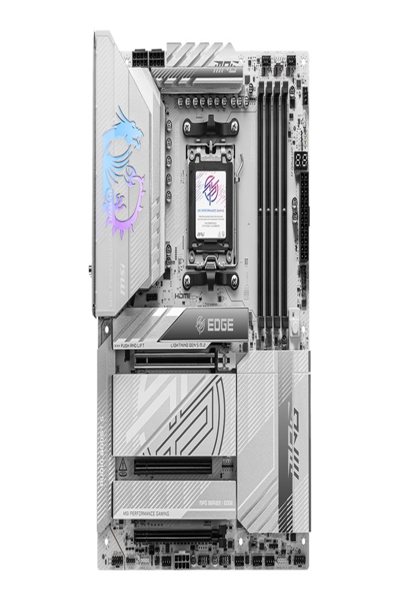

• MSI Motherboard Amd X870E Socket Am5 Atx - Motherboard - AMD Socket AM5 (Ryzen Zen4) - MPG X870E EDGE TI WIFI

  • ND: 1 – 🚚 ✅ CubeSmart Storage, Corona CA, California
  • ND: 2 – 🚚 ✅ Morningstar Storage, Birmingham, Alabama AL
  • ND: 3 – 🚚 ✅ Vänge, Uppsala SE
MSI

MSI Motherboard Amd X870E Socket Am5 Atx - Motherboard - AMD Socket AM5 (Ryzen Zen4) - MPG X870E EDGE TI WIFI

DDR5 - Audio - Bluetooth - HD-Audio - USB 3.2 - USB 3.0 - USB Type C - Bluetooth - USB 3.0 - USB Type C
SKU: MPG X870E EDGE TI WIFI
Condition:
Overview:
MSI Motherboard Amd X870E Socket Am5 Atx - Motherboard - AMD Socket AM5 (Ryzen Zen4) - DDR5 - Audio - Bluetooth - HD-Audio - USB 3.2 - USB 3.0 - USB Type C - Bluetooth - USB 3.0 - USB Type C

Popular in this category

NOTE: The information below is provided for your convenience only, accuracy of specifications cannot be guaranteed. But if necessary, please verify with us before purchasing. Data provided by 1 World Sync

General
Product Type
Motherboard - ATX
Chipset Type
AMD X870E
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
(supports Ryzen 7000/8000/9000 Series)
Supported RAM
Max Size
256 GB
Technology
DDR5
Bus Clock
2400 MHz, 2400 MHz (O.C.), 2600 MHz, 2600 MHz (O.C.), 3200 MHz (O.C.), 4200 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture
Audio
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC4080
Compliant Standards
High Definition Audio
LAN
Network Controller
Realtek RTL8126
Network Interfaces
5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Expansion / Connectivity
Expansion Slots
1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 3.0 x1 1 x PCIe 4.0 x4 3 x M.2 socket (2260/2280 M.2 Key M slot) 1 x M.2 socket (2280/22110 M.2 Key M slot) 1 x M.2 socket (Key E)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces
1 x HDMI 4 x USB 2.0 2 x USB4 1 x USB-C 3.2 Gen 2 5 x USB 3.2 Gen 2 1 x LAN (5Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x SPDIF out 2 x aerial
Internal Interfaces
4 x USB 2.0 - header 4 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2x2 - header 1 x audio - header 1 x SPI - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector
Features
Hardware Features
14+2+1 Phase Power Design, MSI AI Engine, Frozr AI Cooling, Extended Heatsink Design, Dr.MOS MOSFET, double side M.2 Shield FROZR, M.2 Shield FROZR, Enlarged Chipset Heatsink, pre-mounted I/O shield, EZ M.2 Sheild FROZR II, EZ Conn-Design, EZ PCIe Release, MSI Steel Armor II, 8 Layer PCB, 2oz Copper PCB, DIY Friendly Design, Clear CMOS Button, flash BIOS button, EZ Debug LED, 2-Digit Debug Code LED, overvoltage protection, MSI Memory Boost, transient voltage suppressors, overcurrent protection, MSI Audio Boost 5, MSI Mystic Light
Miscellaneous
Included Accessories
EZ Wi-Fi antenna, M.2 plate screw, EZ M.2 clip II remover, USB drive, 1 to 3 EZ Conn-Cable, EZ front panel cable
Cables Included
2 x Serial ATA cable
Software Included
MSI Center, AIDA64 Extreme - MSI Edition, Norton 360 Deluxe (60 days trial)
Width
30.48 cm
Depth
24.384 cm
Package Details
Box
Ident
Manufacturer ID
MPG X870E EDGE TI WIFI
EAN/UPC
0824142395363

MSI Motherboard Amd X870E Socket Am5 Atx - Motherboard - AMD Socket AM5 (Ryzen Zen4) - DDR5 - Audio - Bluetooth - HD-Audio - USB 3.2 - USB 3.0 - USB Type C - Bluetooth - USB 3.0 - USB Type C
