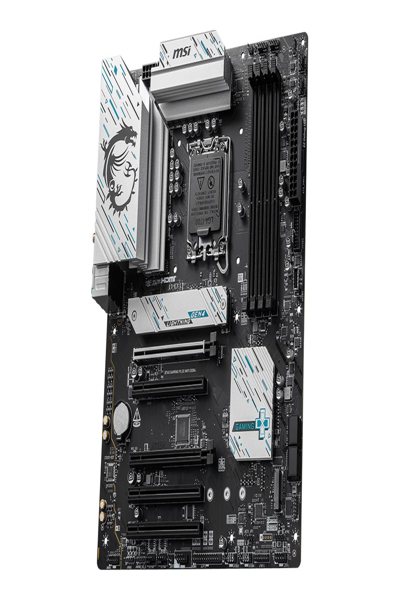

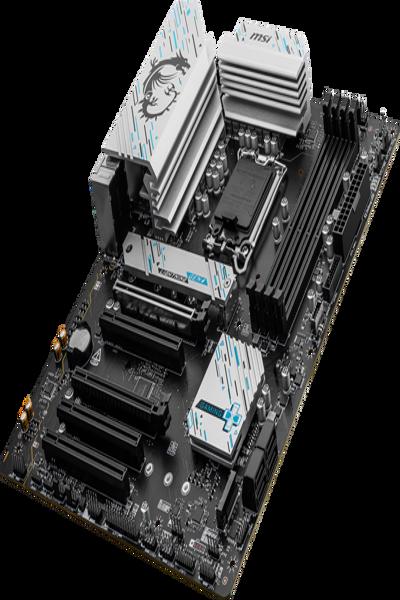

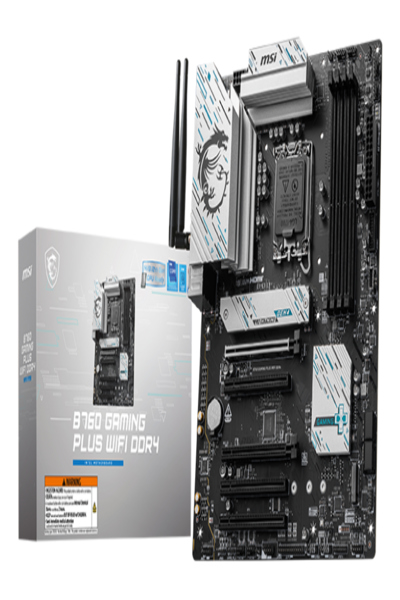

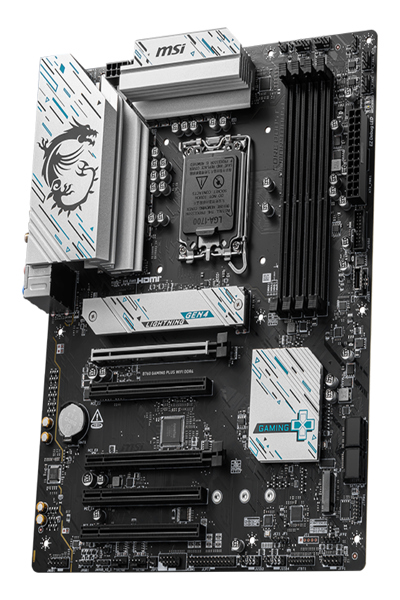

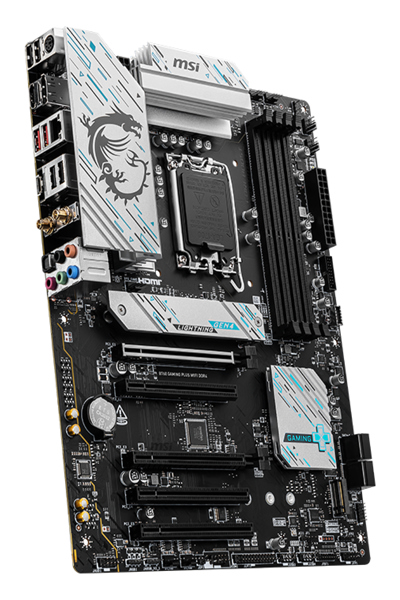

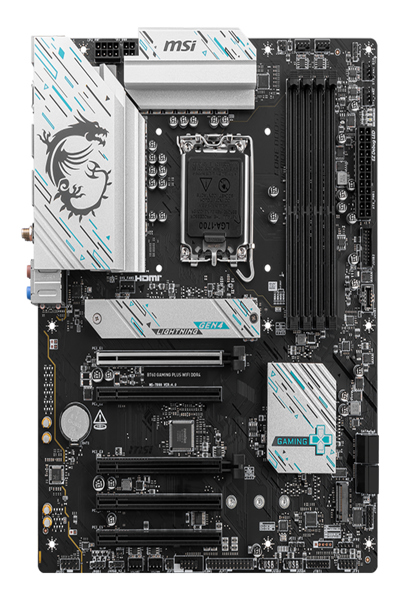

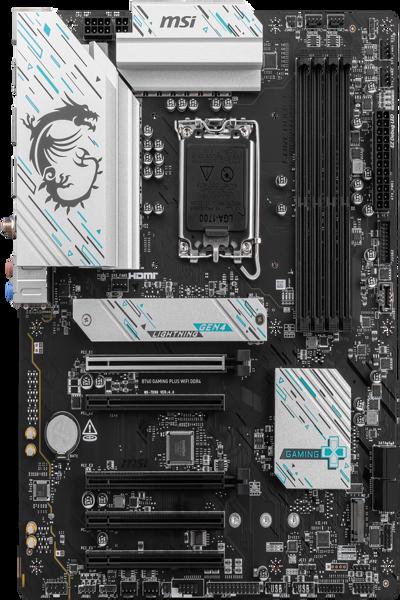

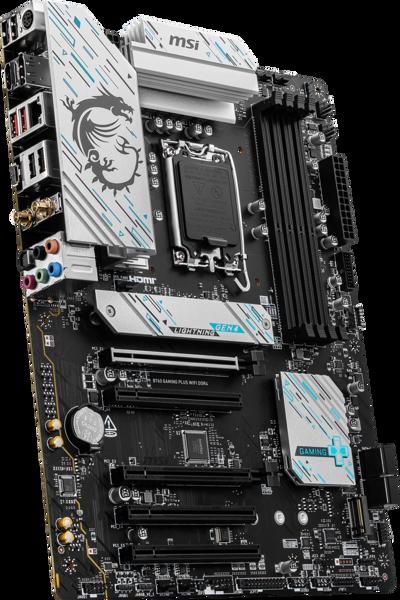

MSI B760 GAMING PLUS WIFI DDR4, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, 128 GB, DDR4-SDRAM - Motherboard - Intel Socket 1700 (Core i)
ATX - 128 GB - DDR4 - DIMM - RAID Level: 0 - 1 - 5 - 10 - SATA 6 GB/s - SATA - Audio - Bluetooth - Gigabit LAN - HD-Audio - LAN - USB 3.2 - USB 3.0 - USB Type C - WLAN - Bluetooth - USB 3.0 - USB Type C - HDMI - SATA - PCI
Brand: MSI
SKU: 7D89-043R
$215.88
Price as listed. Shipping charges calculated at checkout.
In stock
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
Processor
Processor manufacturer
Intel
Processor socket
LGA 1700
Compatible processor series
Intel® Celeron®, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Maximum internal memory supported by processor
128 GB
Memory
Supported memory types
DDR4-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC ?ompatibility
Non-ECC
Supported memory clock speeds
2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800,5000,5066,5200,5333 MHz
Maximum internal memory
128 GB
Features
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
Intel
Motherboard chipset
Intel B760
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Internal I/O
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Total number of SATA connectors
4
S/PDIF out connector
Yes
TPM connector
Yes
RGB LED pin header
Yes

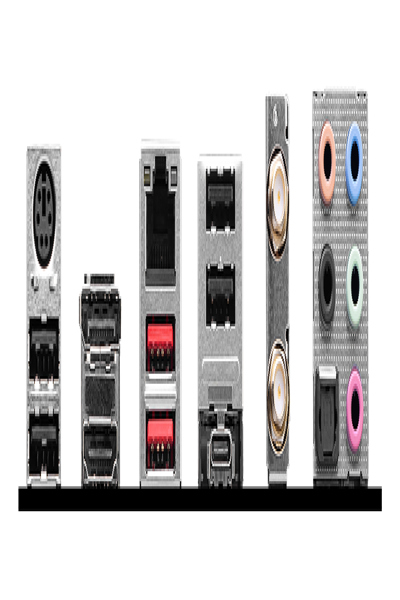

Rear panel I/O ports
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
0
HDMI ports quantity
1
HDMI version
2.1
DVI-D ports quantity
0
DisplayPorts quantity
1
DisplayPort version
1.4
S/PDIF out port
Yes
Storage controllers
Supported storage drive interfaces
M.2, SATA
Number of HDDs supported
4
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 5, 10
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
Dragon RTL8125BG
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth
Yes
Bluetooth version
5.3
Expansion slots
PCI Express x1 slots
3
PCI Express x1 (Gen 3.x) slots
3
PCI Express x16 slots
2
PCI Express x16 (Gen 4.x) slots
2
Number of M.2 (M) slots
2
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
6.4
Weight & dimensions
Width
243.8 mm
Depth
304.8 mm
Ident
Manufacturer ID
7D89-043R
EAN/UPC
4711377247900
MSI B760 GAMING PLUS WIFI DDR4, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, 128 GB, DDR4-SDRAM - Motherboard - Intel Socket 1700 (Core i) - ATX - 128 GB - DDR4 - DIMM - RAID Level: 0 - 1 - 5 - 10 - SATA 6 GB/s - SATA - Audio - Bluetooth - Gigabit LAN - HD-Audio - LAN - USB 3.2 - USB 3.0 - USB Type C - WLAN - Bluetooth - USB 3.0 - USB Type C - HDMI - SATA - PCI
0.0
0 review(s)
