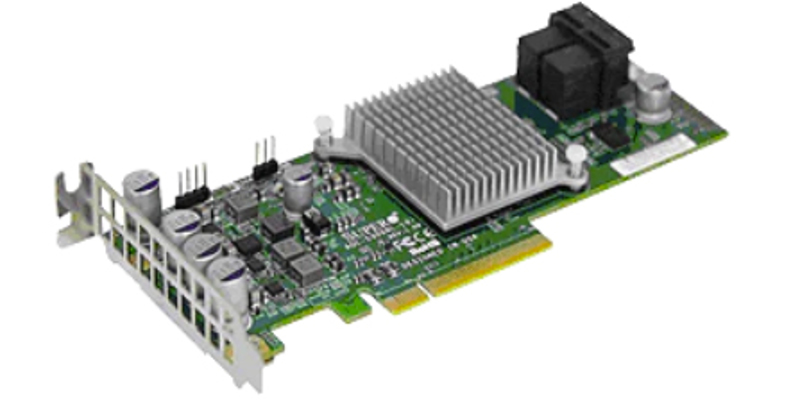

SuperMicro LP 8-Port SAS-3 Controller AOC-S3008L-L8E+
Brand: Supermicro
SKU: AOC-S3008L-L8E+-O
$441.29
Price as listed. Shipping charges calculated at checkout.
In stock
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Host interface
PCIe
Output interface
SAS
Expansion card form factor
Low-profile
Cooling type
Passive
Processor frequency
1200 MHz
Bandwidth
12 Gbit/s
Width
68.6 mm
Depth
167.6 mm
Weight
226 g
Supermicro AOC-S3008L-L8E+. Host interface: PCIe, Output interface: SAS, Expansion card form factor: Low-profile. Cooling type: Passive. Processor frequency: 1200 MHz, Bandwidth: 12 Gbit/s. Width: 68.6 mm, Depth: 167.6 mm, Weight: 226 g
| Estimate Gross Weight | 0.3 |
|---|
https://www.supermicro.com/en/products/accessories/addon/AOC-S3008L-L8e.php
Supermicro 12Gb/s Eight-Port SAS Internal Host Bus Adapter
The Supermicro HBA AOC-S3008L-L8e features 8 internal SAS connectors for high-performance storage connectivity.
Use a Broadcom 3008 I/O processor with Fusion-MPT (Message Passing Technology) for optimum performance and a PCI Express host interface for increased bandwidth.
The AOCS3008L-L8e supports 122 devices as a HBA in IT mode.
Supermicro 12Gb/s Eight-Port SAS Internal Host Bus Adapter
The Supermicro HBA AOC-S3008L-L8e features 8 internal SAS connectors for high-performance storage connectivity.
Use a Broadcom 3008 I/O processor with Fusion-MPT (Message Passing Technology) for optimum performance and a PCI Express host interface for increased bandwidth.
The AOCS3008L-L8e supports 122 devices as a HBA in IT mode.
- y Features
- Zoning capability w/ SAS3 expanders
- OS Support: Windows 2012, 2k8,Vista, RedHat Enterprise and SUSE Linux
- Processor at 1.2 GHZ
- AOC-S3008L-L8e+ enables IPMI interface through new I┬▓C port
- Uses 2 MiniSAS HD (SFF-8643) connectors
- Operating Temp: 0┬░ to 55┬░C
- Broadcom 3008 SAS controller
- 8-port (internal), 12Gb/s per port
- Supports 122 devices - HBA only
- Automatically negotiates PCI-E (1.x, 2.x and 3.x) link widths
- Power management support
- Supports 3.0, 6.0 and 12Gb Gb/s SAS and SATA data transfer rates
- Port independent auto-negotiation
- Supports SSP, SMP, STP and SATA protocols
