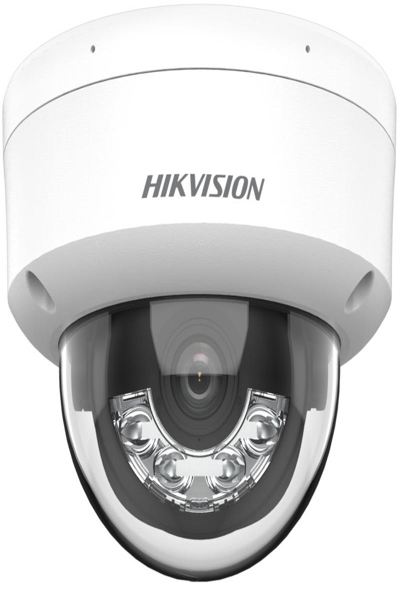

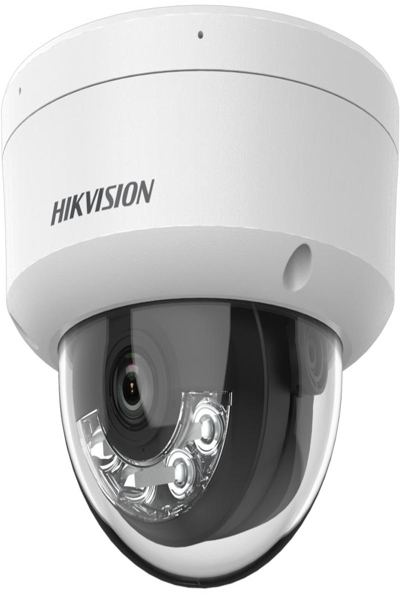

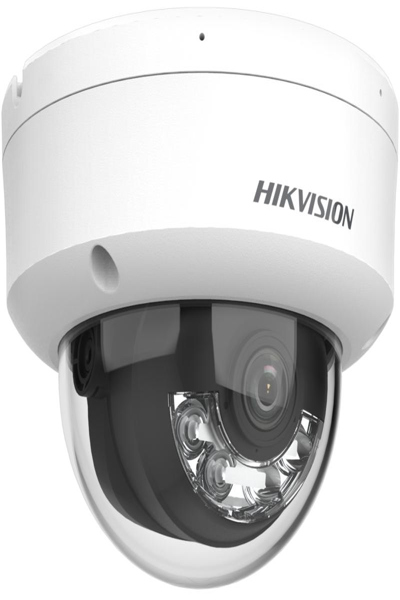

Hikvision Value Series DS-2CD1143G2-LIU(4mm), IP security camera, Indoor &
Brand: Hikvision
SKU: DS-2CD1143G2-LIU(4MM)
$155.88
Price as listed. Shipping charges calculated at checkout.
In stock
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
Design
Form factor
Dome
Mounting type
Ceiling
Product colour
White
Housing material
Metal, Plastic
International Protection (IP) code
IP67
IK code
IK08
Power
Power source type
DC, PoE
Power consumption (max)
6 W
Power consumption (Power over Ethernet (PoE))
7.5 W
DC output voltage
12
DC output current
0.5 A
Performance
Type
IP security camera
Placement supported
Indoor & outdoor
Connectivity technology
Wired
Wide Dynamic Range (WDR)
Yes
Day/night mode
Yes
Infrared (IR) cut-off filter
Yes
Built-in light
Yes
Number of languages
2
Languages support
English, Ukrainian
Dynamic range
120 dB
Network
Ethernet LAN
Yes
Wi-Fi
No
Bluetooth
No
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.3af
Supported network protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Number of users
32 user(s)
User access level
Administrator, Operator, User
Live view
Yes
Number of simultaneous live view channels
6 channels
Packaging content
Number of cameras
1
Mounting kit
Yes
Manual
Yes
Night vision
Night vision
Yes
Night vision distance
30 m
LED type
IR/White
Infra-red wavelength
850 nm
Lens system
Number of lenses
1
Detect distance
78 m
Observe distance
31 m
Recognize distance
15 m
Maximum aperture number
1.6
Identify distance
7 m
Fixed focal length
4 mm
Image sensor
Sensor type
CMOS
Number of sensors
1
Optical sensor size
25.4 / 3 mm
Progressive scan
Yes
Storage
Built-in HDD
No
Video
Maximum resolution
2560 x 1440 pixels
Total megapixels
4 MP
Video formats supported
H.264, H.264+, H.265, H.265+
Video compression formats
H.264, H.264+, H.265, H.265+
Supported graphics resolutions
2560 x 1440, 1920 x 1080 (HD 1080), 640 x 480 (VGA), 640 x 360, 1280 x 720 (HD 720)
Supported video modes
360p, 480p, 720p, 1080p, 1440p
Video recording
Yes
Frame rate
25 fps
Noise reduction
Yes
Noise reduction technology
3D noise reduction
Image quality adjustment
Brightness, Contrast, Sharpness, Saturation
Privacy masking
Yes
Back Light Compensation (BLC)
Yes
Highlight Compensation (HLC)
Yes
Digital Wide Dynamic Range (DWDR)
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Camera
Minimum illumination
0 lx
Angle of rotation
355 °
Lens viewing angle, horizontal
78 °
Lens viewing angle, vertical
42 °
Lens viewing angle, diagonal
93 °
Tilt angle range
0 - 75 °
Pan range
0 - 355 °
Camera shutter speed
1/100000 - 1/3 s
Number of Privacy masking areas
4
Audio
Audio formats supported
AAC-LC, G.711 A-law, G.711 ?-law, G.722.1, MP2L2, PCM
Signal-to-Noise Ratio (SNR)
52 dB
Built-in microphone
Yes
Bit rate range
16 - 160 Kbit/s
Sample rates
8 - 16 kHz
Operational conditions
Operating temperature (T-T)
30 - 60 °C
Storage temperature (T-T)
30 - 60 °C
Operating relative humidity (H-H)
0 - 95 %
Storage relative humidity (H-H)
0 - 95 %
Weight & dimensions
Height
97.7 mm
Diameter
12.1 cm
Weight
550 g
Security
Password protection
Yes
Video motion detection
Yes
HTTPS encryption
Yes
Heartbeat
Yes
Mirror
Yes
Password reset via email
Yes
Sustainability
Compliance certificates
BIS, UL, WEEE, CB, CE, REACH, RoHS
Sustainability compliance
Yes
Packaging data
Package width
150 mm
Package depth
150 mm
Package height
141 mm
Package weight
800 g
Ident
Manufacturer ID
DS-2CD1143G2-LIU(4MM)
EAN/UPC
6931847189051
Hikvision Value Series DS-2CD1143G2-LIU(4mm), IP security camera, Indoor &
