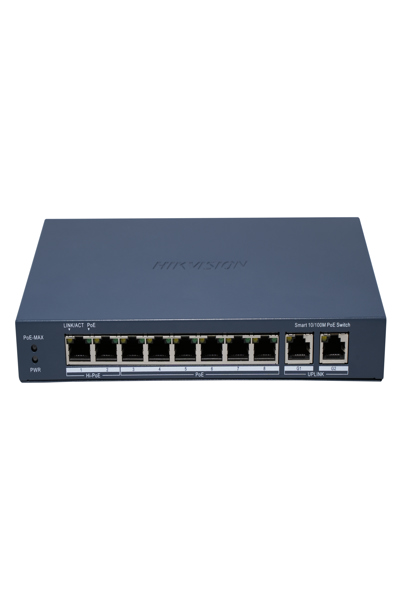

Hikvision Switch DS-3E1310HP-EI B - Switch - 0.1 Gbps
Amount of ports: - Ethernet - Power over Ethernet - RJ-45 - Managed
Brand: Hikvision
SKU: 301803424
$131.88
Price as listed. Shipping charges calculated at checkout.
In stock
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
Design
Rack mounting
No
Stackable
No
Product colour
Grey
Housing material
Metal
LED indicators
Yes
International Protection (IP) code
IP40
Wall mountable
Yes
Management features
Switch type
Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
10
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity
8
Gigabit Ethernet (copper) ports quantity
2
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Power connector
DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
110 W
Data transmission
MAC address table
4000 entries
Switching capacity
9.6 Gbit/s
Forwarding rate
7.14 Mpps
Store-and-forward
Yes
Network
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
10G support
No
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
Yes
Number of VLANs
4094
Power
Power source
DC/PoE
Power supply included
Yes
DC input voltage
54 V
Input current
2.22 A
Power consumption (typical)
10 W
Power consumption (max)
120 W
Surge protection
Yes
Surge protection voltage
6 kV
Certificates
Compliance certificates
REACH, RoHS, WEEE
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
40 - 85 °C
Operating relative humidity (H-H)
5 - 95 %
Storage relative humidity (H-H)
5 - 95 %
Weight & dimensions
Width
217.6 mm
Depth
108.5 mm
Height
27.6 mm
Weight
550 g
Optical fiber
Transmission distance (max)
0.3 km
Security
Loop protection
Yes
Packaging data
Package weight
950 g
Ident
Manufacturer ID
301803424
EAN/UPC
6936422135867
Hikvision Switch DS-3E1310HP-EI B - Switch - 0.1 Gbps - Amount of ports: - Ethernet - Power over Ethernet - RJ-45 - Managed
