Hikvision

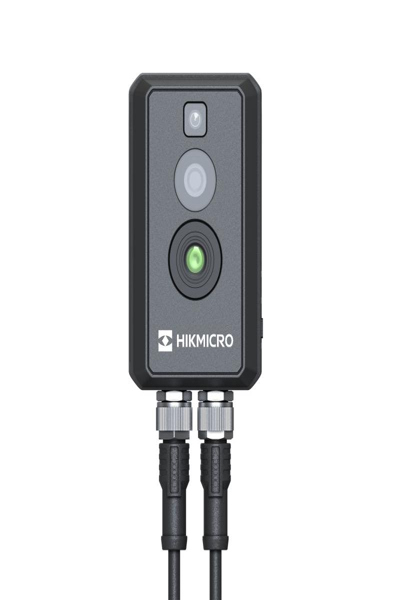

Hikvision HM-TD3028T-2/Q B Thermal Cube - HM-TD3028T-2/Q(B)

Digital Camera
SKU: HM-TD3028T-2/Q(B)
Condition:
Overview:
Hikvision HM-TD3028T-2/Q B Thermal Cube - Digital Camera

Popular in this category

NOTE: The information below is provided for your convenience only, accuracy of specifications cannot be guaranteed. But if necessary, please verify with us before purchasing. Data provided by 1 World Sync

Power
Power source type
DC
Power consumption (max)
5 W
DC output voltage
12
Performance
Type
IP security camera
Placement supported
Indoor & outdoor
Connectivity technology
Wired
Thermal module
Yes
Number of languages
33
Languages support
Multi
Thermal sensitivity (NETD)
40 mK
IFOV (spatial resolution)
5.71 mRad
Network
Ethernet LAN
Yes
Wi-Fi
No
Bluetooth
Yes
Ethernet interface type
Gigabit Ethernet
Networking standards
IEEE 802.3af
Supported network protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Packaging content
Number of cameras
1
Design
Mounting type
Wall
Product colour
Black
International Protection (IP) code
IP67
Lens system
Number of lenses
1
Zoom capability
Yes
Digital zoom
4 x
Maximum aperture number
2.2
Fixed focal length
1.4 mm
Fixed focal length (thermal module)
2.1 mm
Aperture number (thermal module)
1
Image sensor
Sensor type
CMOS
Number of sensors
2
Optical sensor size
25.4 / 5 mm
Sensor type (thermal module)
Vanadium Oxide Uncooled Focal Plane Arrays
Effective sensor resolution (thermal module)
256 x 192 pixels
Video
Maximum resolution
2688 x 1520 pixels
Video compression formats
H.264, H.265, M-JPEG
Frame rate
25 fps
Noise reduction
Yes
Noise reduction technology
3D noise reduction
Gain control type
Auto
Image quality adjustment
Brightness, Contrast, Sharpness
Bit rate
256 Kbps - 16 Mbps
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
RS-485 ports
1
Management features
Web browser
Yes
Reset button
Yes
Camera
Minimum illumination
0 lx
Vertical field of view (thermal module)
64.2 °
Horizontal field of view (thermal module)
90 °
Lens viewing angle, horizontal
96.9 °
Lens viewing angle, vertical
77.2 °
Camera pixel size
12 µm
Response waveband
8 - 14 µm
Security
Alarm output channels
2
Temperature sensor
Yes
Temperature measurement range
20 - 550 °C
Temperature measurement accuracy
2 °C
Password protection
Yes
Active tampering alarm
Yes
IP address filtering
Yes
Privacy protection
Yes
Heartbeat
Yes
Mirror
Yes
Digital watermark
Yes
Operational conditions
Operating temperature (T-T)
20 - 60 °C
Operating relative humidity (H-H)
0 - 95 %
Weight & dimensions
Width
56 mm
Depth
38.9 mm
Height
111.2 mm
Weight
335 g
Ident
Manufacturer ID
HM-TD3028T-2/Q(B)
EAN/UPC
6974004645014
