DIGITUS

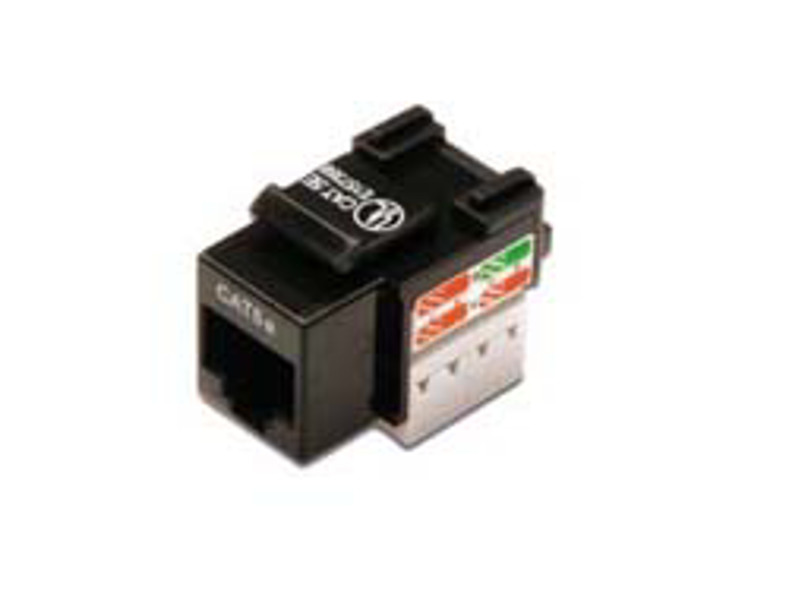

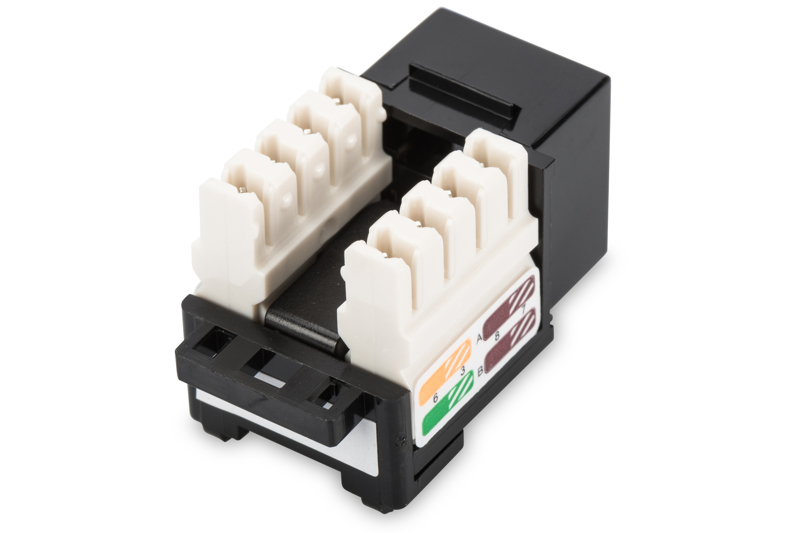

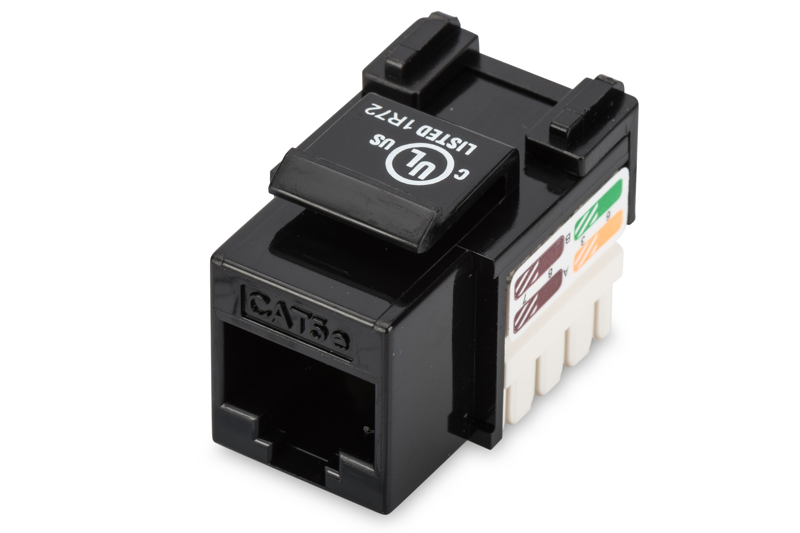

DIGITUS CAT5e RJ45 Keystone Black - DN-93501

CAT 5e Keystone Jack
SKU: DN-93501
Condition: New
Overview:
Digitus CAT 5e, Class D Keystone Module, unshielded. Product colour: Black. Width: 30 mm, Depth: 20 mm, Height: 25 mm. Package width: 75 mm, Package height: 115 mm

Popular in this category

NOTE: The information below is provided for your convenience only, accuracy of specifications cannot be guaranteed. But if necessary, please verify with us before purchasing. Data provided by 1 World Sync

General
Product colour
Black
Width
30 mm
Depth
20 mm
Height
25 mm
Package width
75 mm
Package height
115 mm
Download Link

Digitus CAT 5e, Class D Keystone Module, unshielded. Product colour: Black. Width: 30 mm, Depth: 20 mm, Height: 25 mm. Package width: 75 mm, Package height: 115 mm

https://de.assmann.shop/ean.php?ean=4016032245087&lang=en

The Item "DN-93501" from DIGITUS® is an unshielded CAT 5e Keystone Module, which provides best performance and link quality for your network. The cable installation takes place via LSA, color coded acc. EIA/TIA 568 A&B.

  • Transmission properties: Category 5e
  • RJ45 female material: ABS UL 94V-0
  • RJ45 female contact: Tinned phosphor bronze, 0.5 ? gold-plated contact
  • LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
  • Conductor plate: FR4, UL 94V-0
  • Physical properties:
  • Insertion force: 30N max. (IEC 60603-7-5)
  • Retention strength: 7.7 kg between jack and plug
  • Operation temperature: -20┬░ C to +70 ┬░C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T
  • IDC wire size: 22 ΓÇô 26 AWG solid and stranded conductor
  • Insulation resistance: > 500 MOhm
  • Contact resistance: < 20 MilliOhm
  • Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
  • Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
  • General properties:
  • Suitable for 483 mm (19") cabinet mounting
  • RJ45 female, 8P8C
  • Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
  • Cable fixing with smart cable ties
  • Technical properties:
