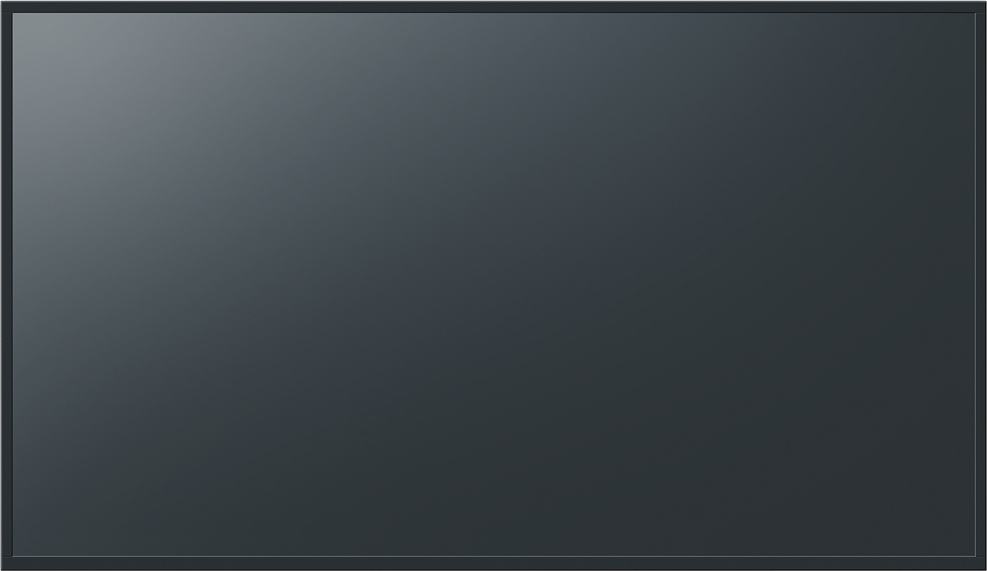

TH-65EQ1 - 65" (164cm) 4K UHD LED-Display (350 cd/m? | USB Mediaplayer | Lautsprecher | LAN) - in schwarz - TH-65EQ1W

Panasonic TH-65EQ1W. Display diagonal: 165.1 cm (65"), Display technology: VA, Display resolution: 3840 x 2160 pixels. Ethernet LAN data rates: 10,100,1000 Mbit/s. RMS rated power: 20 W. Product design: Digital signage flat panel, Product colour: Black, Placement supported: Indoor. Purpose: Universal, Operating hours (hours/days): 18/7

https://panasonic.net/cns/prodisplays/products/eq1/

Detailed 4K images with a natural feeling of depth.
Available in a wide range of sizes, these displays meet a variety of needs.

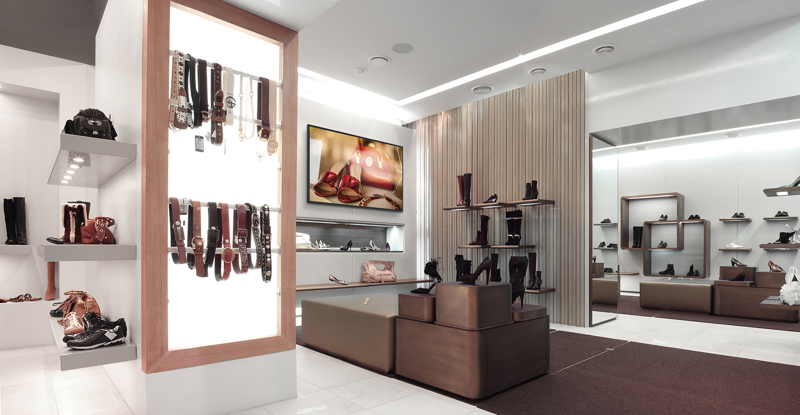

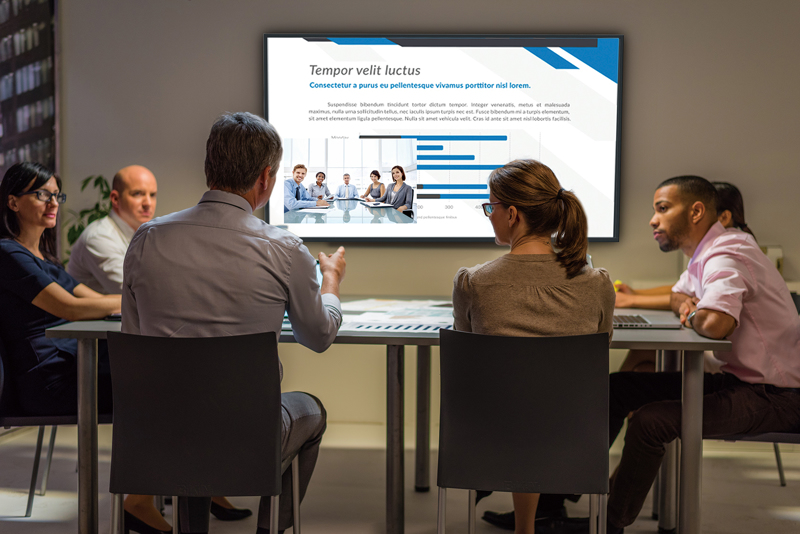

It provides storefront signage that faithfully relays textures, and displays complicated drawings with high precision, making it excellent for office use. It is also equipped with a wide variety of connection terminals and built-in speakers, enabling use as a monitor for video conferences.

A Stylish and Slim Design Accentuates the Image
The stylish and slim design complies with the ADA standard (a depth of less than 4-inch (approx.100mm) with brackets) in all important aspects. The narrow bezel displays higher-impact images, further enhancing the 4K picture quality. The slim profile isn't the least oppressive even when installed in a hanging configuration.

Elaborate 4K Picture Quality Down to the Tiniest Details
With approximately 8,290,000 pixels, about four times the pixels of a Full-HD display, images are highly detailed. This dynamic, large-screen display archives true-to-life finely nuanced images. The 4K display is an excellent choice for digital signage and meeting rooms

The IPS Panel Has a Wide Viewing Angle and Minimal Color Fluctuations
There is very little change in color, compared with the VA panel, when the screen is viewed at right or left angles, so the images are crisp and clear. This is ideal for providing correct information to places with a lot of people present, such as public spaces and facilities.

The Display Has a Built-in 4K Compatible USB Media Player
By simply inserting a USB memory stick onto which content has been saved, playback automatically starts. Since it is 4K compatible, it easily provides 4K digital signage without having to use a PC or set-top box. Content can be consecutively played without letterboxing. Content can also be switched via LAN or multiple displays can be operated.

Use the Remote Control to Edit the Playlist without a PC
Use the main unit's remote control to set the playback sequence and playback time for content saved onto a USB memory stick to edit the playlist.

Dynamic Signage is Possible with the Portrait Zoom

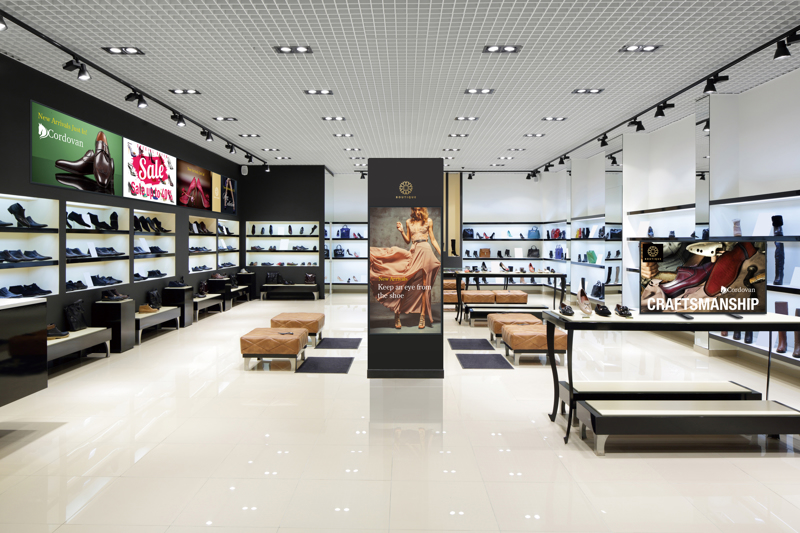

Split the content from image sources, and enlarge the display in a portrait orientation. There is no need to use a special device, such as a processor, while creating content from various images. Placing three TH-65EQ1 models vertically creates a display equivalent to 112 inches. This enables highly visible store signage.

Multi Monitoring & Control Software
Compatible with Multi Monitoring & Control Software for addition of new functions, such as automatic searching for map displays and registered devices. Displays and peripheral equipment on the intranet can be controlled and their status can be monitored. Also error notification and error indication can be detected by an indication monitoring function (for a fee) for improved maintenance.

PC Software Enables Even Easier and More Convenient Content Playback and Management
The EQ1 Series features a USB Media Player function that allows easy signage playback. Content Management Software is an application software for scheduling digital signage playback on a computer. It also allows poser ON/OFF to be set.

Play Content Automatically with Scheduling Function
Content Management Software for PC Version 3.2 (free) enables easy playlist creation with media support including combinations of still and video images. You can set up schedules for playing and ending your media playlist at predetermined dates and times.

Convenient Playlist and Schedule Syncing
Playlists and schedules created with Content Management Software can be transferred to displays with USB memory or via LAN. Synchronized playback on multiple displays is also supported.

USB Memory Network Settings
Using a USB memory device, the network setting can be made for multiple displays. Individual IP addresses for each unit are automatically set.

Cloning Function Saves Labor When Setting Up Multiple Devices
When installing multiple displays, the Cloning function lets you use a USB memory (or LAN network) to copy the settings of a parent display to other units, thus greatly shortening the setup time.

Timer-Programmable Switching of Device Connection
The timer function of the display unit can be used to change connected signal source devices at a desired time.
This allows an easy change of displayed content according to the application or the progress of an event.

Failover and Failback Safeguards for Mission Critical Situations
If the main video and audio signals are interrupted, the system immediately switches to alternative signals. If the main signals are restored, the original image is displayed.
This makes it ideal for mission critical control rooms and surveillance centers.

SNMP Ver. 1-Ver. 3 Compatible
SNMP (Simple Network Management Protocol) can be used with network devices and network surveillance, and SNMP Ver. 3 is widely used in situations, such as courtrooms and financial services, where strict security is required. The EQ1 Series can thus be used as a network device.

Smooth Switching of Presenters
The EQ1 Series detects the signal when the display and PC are connected with a video cable, and activates the following chain of operations: display power ON ? input switched ? display power OFF. Without requiring remote control operation, a presenter can smoothly switch the PC screen, and there are no concerns about forgetting to turn off the power when the meeting ends.

HDMI CEC Device Linking Supported
HDMI-CEC compatible devices can be connected to the display by an HDMI cable, enabling the basic operations (such as power ON/OFF), of the compatible devices to be controlled by the display's remote control.

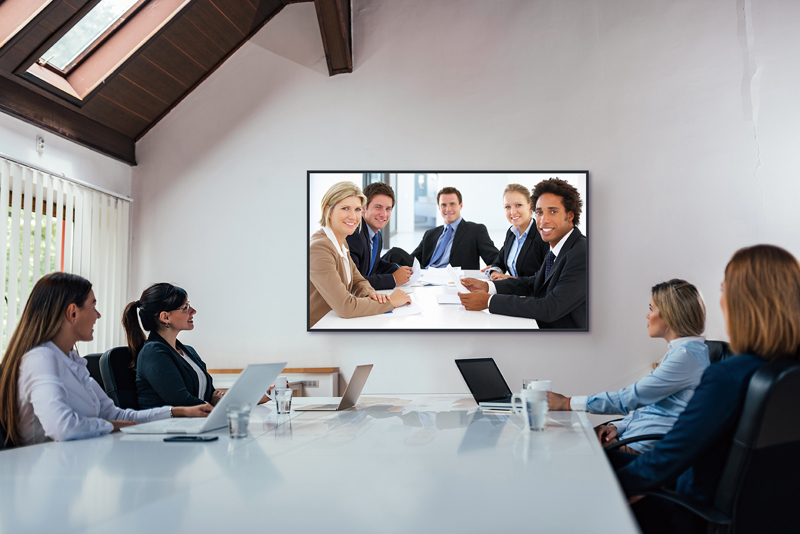

Connection to an external device is convenient for video conferences
Cisco Systems can be connected. The power supply for the display can be turned on and off by the Cisco Systems Device Controller. Or when connected to a Cisco Systems device, the video mode, video conference mode, etc., can be automatically set.

Built-in Speakers for the Playback of Content with Sound
The display unit has built-in speakers so that it can playback content with sound without the connection of external speakers. This allows maximum use of a limited space for the installation of a large-screen display.

Supports LAN Control Connection
The EQ1 Series can be controlled by LAN or RS-232C. You can configure the display into your existing control system, and can control several devices simultaneously. It also supports AMX or Crestron Connectedâ„¢ LAN control.

A conference room audio mode for easier listening.
This function makes voices easier to listen to in video conferences or when the video is displayed, for improved audio quality.
A setting is also possible to improve sound muffling when the display is mounted on a wall. If the automatic sound volume adjustment function is used, information sharing is possible with the sound level at a comfortable level.

• 4k ultra HD resolution delivering the highest detail and image quality. Non-4K sources are also beautifully compensated
• Simple signage with built in USB media player. Synchronized playback on multiple displays via USB and LAN
• Extensive connectivity features. 4K/60p video input signals via 2 x HDMI. Supports CEC over HDMI® for power on/off
• Easy set up and safe operation. Failover and Failback function for any unexpected troubles
• Monitoring of multi-displays can be done through the free Multi Monitoring & Control software
