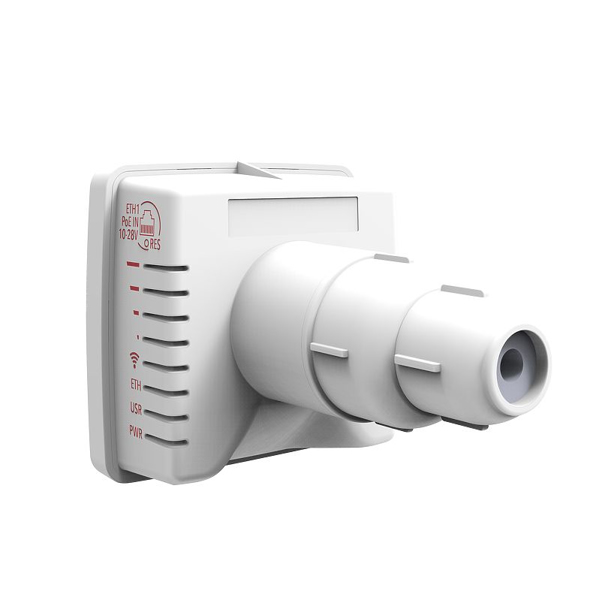

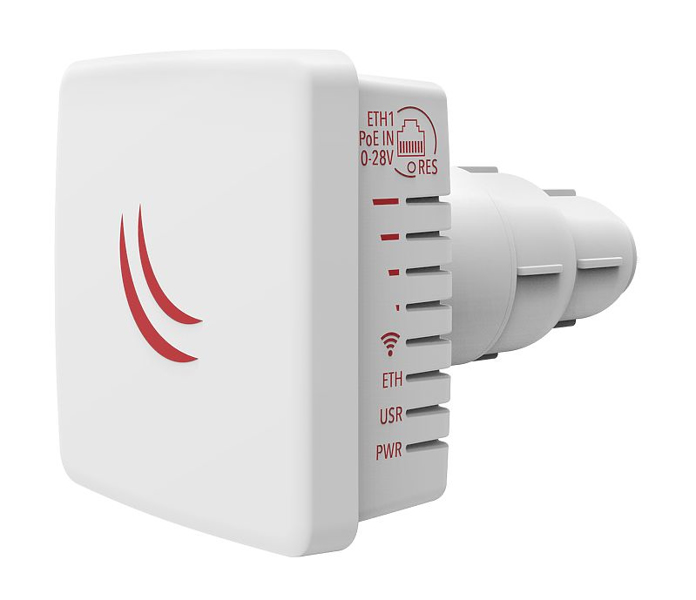

MikroTik RBLDF-5ND, LDF 5, LDF 5 with 9dBi integrated 5GHz antenna
MikroTik RBLDF-5ND, LDF 5, LDF 5 with 9dBi integrated 5GHz antenna, Dual Chain 802.11 and wireless - RJ-45 - 54MBit/s - 802.11a/n - PoE
Brand: MikroTik
SKU: RBLDF-5ND
$0.00
Price as listed. Shipping charges calculated at checkout.
Out of stock
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Wi-Fi data rate (max)
54 Mbit/s
Ethernet LAN data rates
10,100 Mbit/s
Frequency band
5.150 - 5.875 GHz
5 GHz
Y
AC input voltage
10 - 28 V
Power consumption (typical)
6 W
Product colour
Red, White
Antenna gain level (max)
9 dBi
Flash memory
16 MB
Internal
N
Internal memory
64 MB
Operating system installed
RouterOS
Mikrotik LDF 5. Wi-Fi data rate (max): 54 Mbit/s, Ethernet LAN data rates: 10,100 Mbit/s, Frequency band: 5.150 - 5.875 GHz. AC input voltage: 10 - 28 V, Power consumption (typical): 6 W. Product colour: Red, White. Antenna gain level (max): 9 dBi. Flash memory: 16 MB, Internal memory: 64 MB, Operating system installed: RouterOS
| Estimate Gross Weight | 1.5 |
|---|
https://mikrotik.com/product/rbldf_5nd#fndtn-specifications

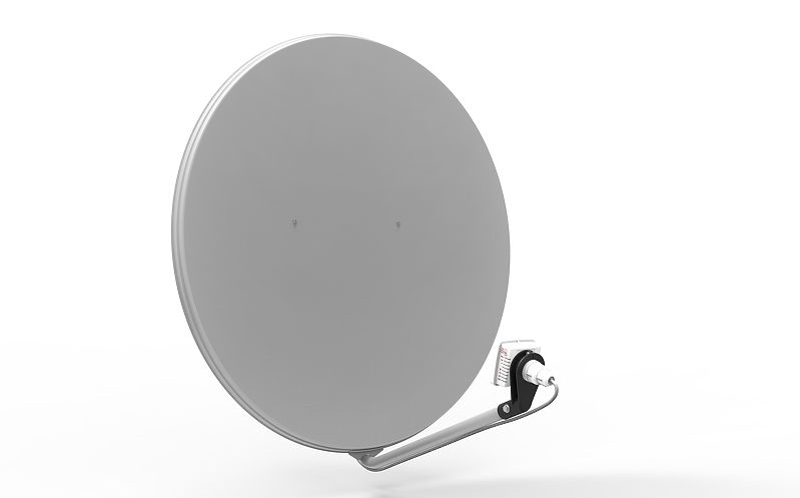

The LDF (Lite Dish Feed) is an outdoor wireless system with a built in antenna, meant to be installed on satellite offset dish antennas. The dish will act as a reflector, amplifying the signal.

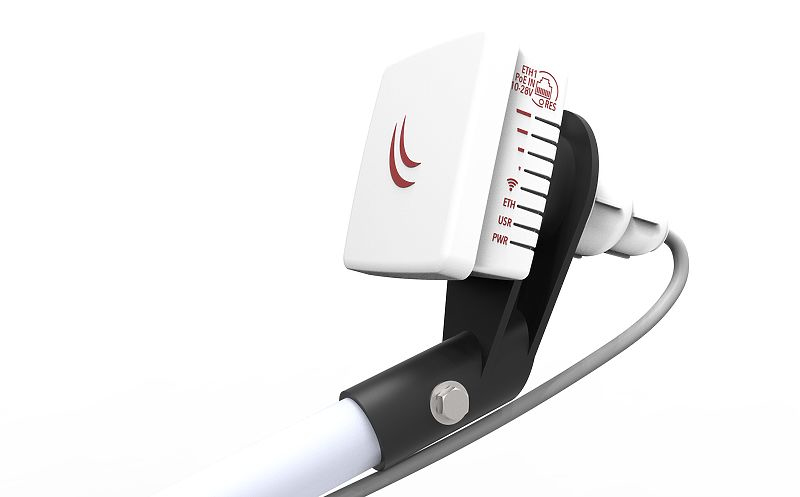

This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long range wireless links. The offset mount is universal at 40mm diameter, and the LDF can easily be placed inside it. Since the LDF itself is a tiny little package, it makes shipping and deployment simple and low cost.
Using a dish of up to 100cm in diameter, it is possible to obtain antenna amplification of up to 33dBi. The device comes preinstalled with RouterOS and is ready to use.
The LDF (Lite Dish Feed) is an outdoor wireless system with a built in antenna, meant to be installed on satellite offset dish antennas. The dish will act as a reflector, amplifying the signal.
This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long range wireless links. The offset mount is universal at 40mm diameter, and the LDF can easily be placed inside it. Since the LDF itself is a tiny little package, it makes shipping and deployment simple and low cost.
Using a dish of up to 100cm in diameter, it is possible to obtain antenna amplification of up to 33dBi. The device comes preinstalled with RouterOS and is ready to use.
