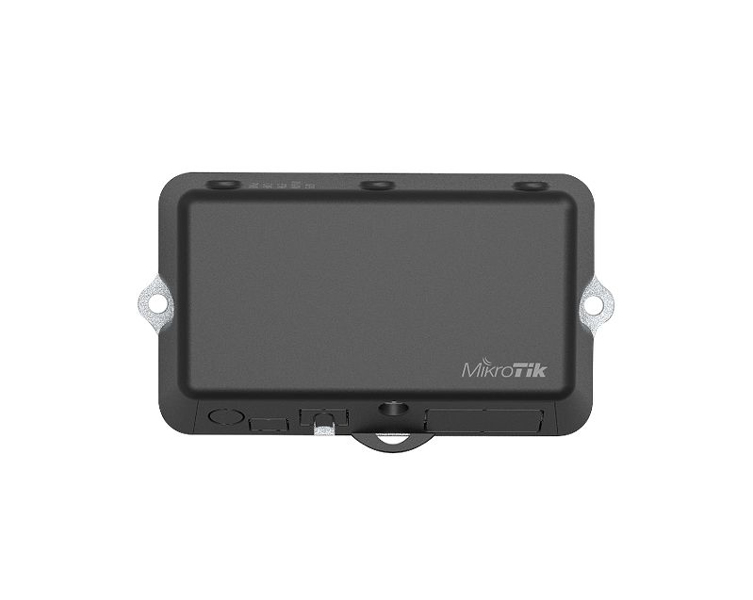

MikroTik LtAP mini LTE kit, RB912R-2ND-LTM&R11E-LTE
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Maximum data transfer rate
100 Mbit/s
Wi-Fi data rate (max)
54 Mbit/s
Ethernet LAN data rates
10,100 Mbit/s
USB connector type
Micro-USB
WAN connection
Mobile network (SIM)
AC input voltage
9 - 57 V
Power consumption (max)
9 W
Placement
Table
Product colour
Black
Antenna gain level (max)
1.5 dBi
Mikrotik LtAP mini LTE kit. Maximum data transfer rate: 100 Mbit/s, Wi-Fi data rate (max): 54 Mbit/s, Ethernet LAN data rates: 10,100 Mbit/s. USB connector type: Micro-USB, WAN connection: Mobile network (SIM). AC input voltage: 9 - 57 V, Power consumption (max): 9 W. Placement: Table, Product colour: Black. Antenna gain level (max): 1.5 dBi
| Estimate Gross Weight | 0.46 |
|---|
The LtAP mini LTE kit is a small waterproof wireless access point with a built in cellular modem that supports 2G, 3G and 4G (LTE) connectivity on International LTE bands 1,2,3,7,8,20,38 and 40.
Connect to the LtAP miniΓÇÖs built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The LtAP mini LTE also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging.
LtAP mini has a special enclosure with with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. External GPS antenna is available for ordering separately (not included, product code ACGPSA).
The LTE card is connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for better coverage. The unit has several powering options: 9-30 V PoE-in by Ethernet port, DC jack and microUSB.
Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform.
