CyberPower Metered ATS Series PDU24005 - PDU AC 200-240 V
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
PDU types
Metered
Rack capacity
1U
Type
Single-phase
AC outlets quantity
10 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler, C20 coupler
LED indicators
Status
Cable length
3.05 m
Firmware upgradeable
Y
Firmware upgradeable via
USB
Nominal input voltage
200 - 240 V
Maximum current
16 A
AC input frequency
50 - 60 Hz
CyberPower PDU24005. PDU types: Metered, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 10 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, C20 coupler. LED indicators: Status, Cable length: 3.05 m. Firmware upgradeable via: USB. Nominal input voltage: 200 - 240 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz
| Estimate Gross Weight | 6.0 |
|---|

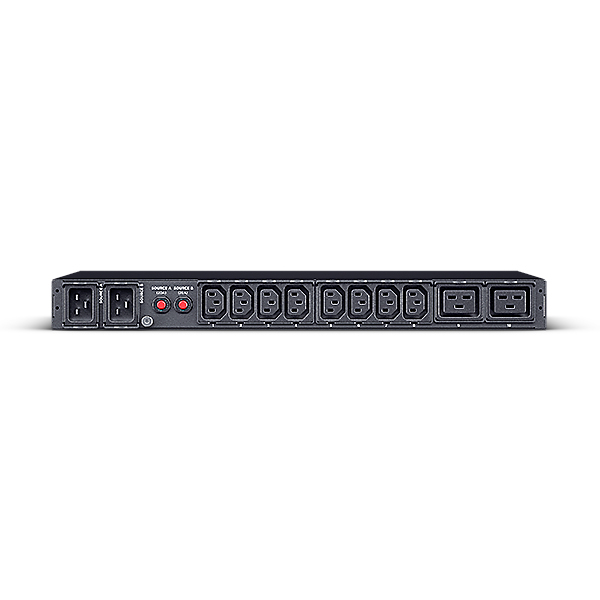

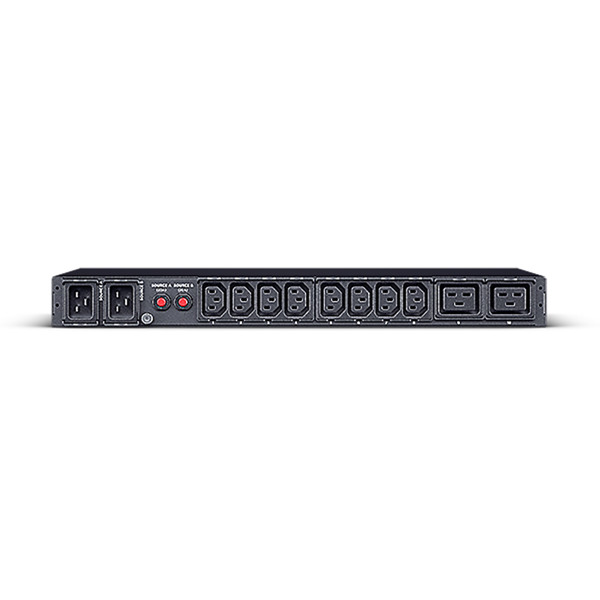

CyberPower PDU24005 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source to ensure continuous operation.

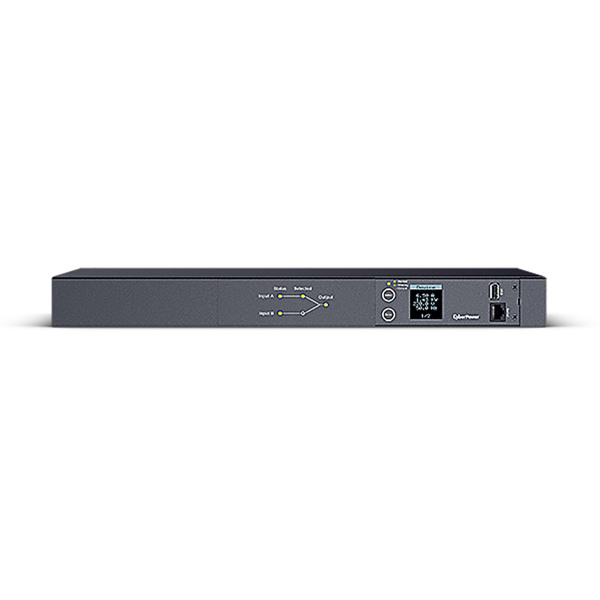

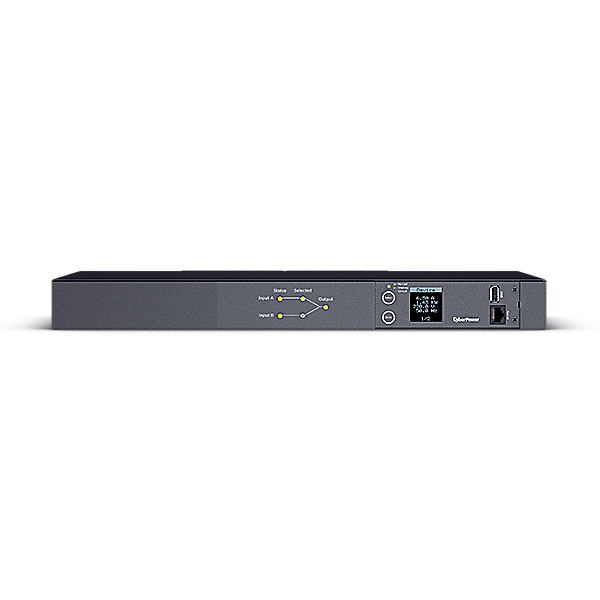

The unit comes with a hot-swappable multifunction readout that displays real-time vitals including current, input voltage, power consumption levels in amps and watts. The digital LCD display is also color configurable, allowing easy maintenance and monitoring of the ATS PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. The firmware can also be conveniently upgraded via the USB port, ensuring the latest features and updates are available for users.
The product can be connected to a PC through the serial port to perform local control of the ATS PDU.
- Real-time Local Monitoring
- Firmware Upgrade via USB
- Industrial-grade Metal Housing
- User Configurable Color LCD
- LED Status Indicator
- User-upgradeable Firmware
- Cord Retention Tray
- Dual Inputs
- Digital Real-time Load Display
- Hot-swappable LCD Design
