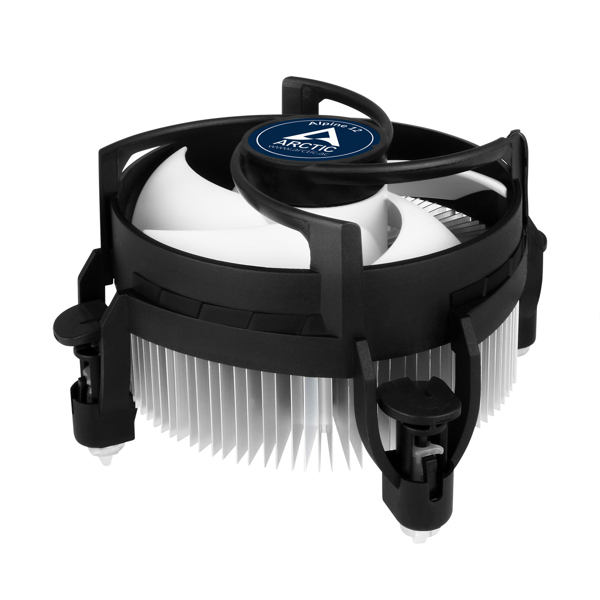

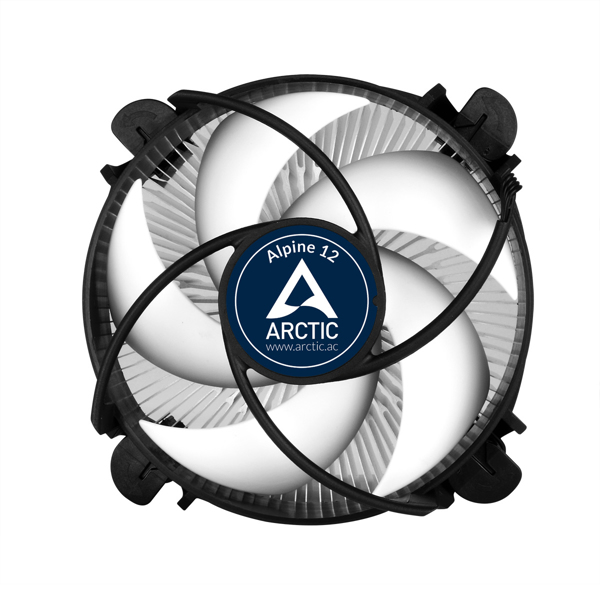

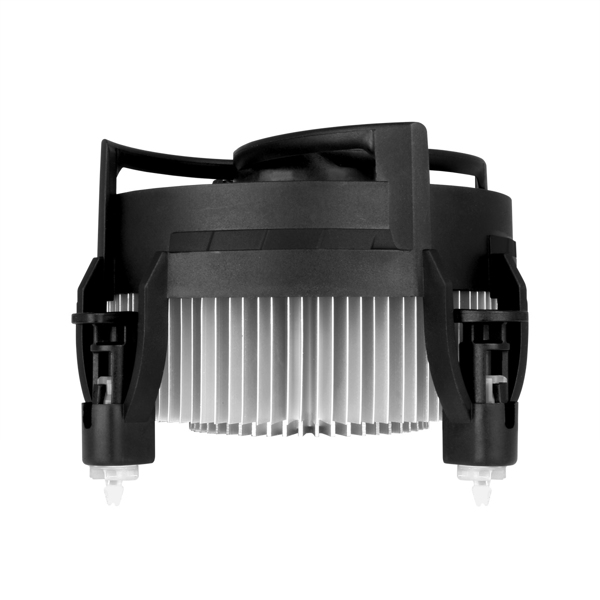

Arctic Alpine 12 - Processor cooler

ARCTIC Alpine 12 – Compact Intel CPU Cooler. Type: Air cooler, Fan diameter: 9.2 cm, Rotational speed (min): 100 RPM, Rotational speed (max): 2000 RPM, Noise level: 0.3 sone, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 95 mm, Depth: 95 mm, Height: 77 mm. Product colour: Black, Silver

https://www.arctic.ac/eu_en/alpine-12.html

Improved Cooling Performance
by New Production Process

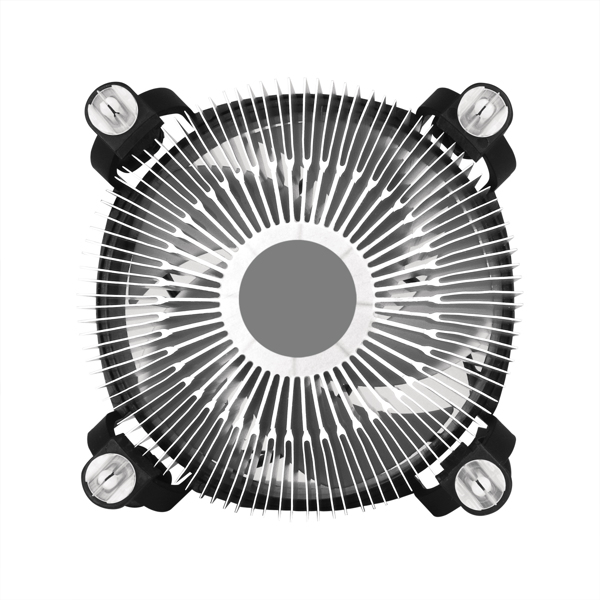

The high thermal conductivity of aluminum is fully retained by a new type of extrusion. This new production process creates a powerful yet very compact radial heat sink. The particularly thin cooling fins of the new Alpine are fanned out in a Y-shape. This increases the surface area of the heat sink and therefore the cooling capacity.

Lower Power Consumption & Minimum Vibration

The new Alpine 12 is powered by an updated motor and runs much more efficiently than its predecessors. Due to sinus-magnetizing the new motor creates just 5 % of the vibrations from commutation of a regular DC-motor. These factors contribute towards saving energy, lowering the coil temperature and reducing vibrations to a minimum without compromising performance.

Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its low coil temperature.

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Pre-applied MX-2 Thermal Paste

The pre-applied, high-performance MX-2 thermal compound ensures fast and clean installation.

Easy and Tool-free Installation

Thanks to the push pins, the installation is really easy. Additional tools are not needed to install the cooler.
