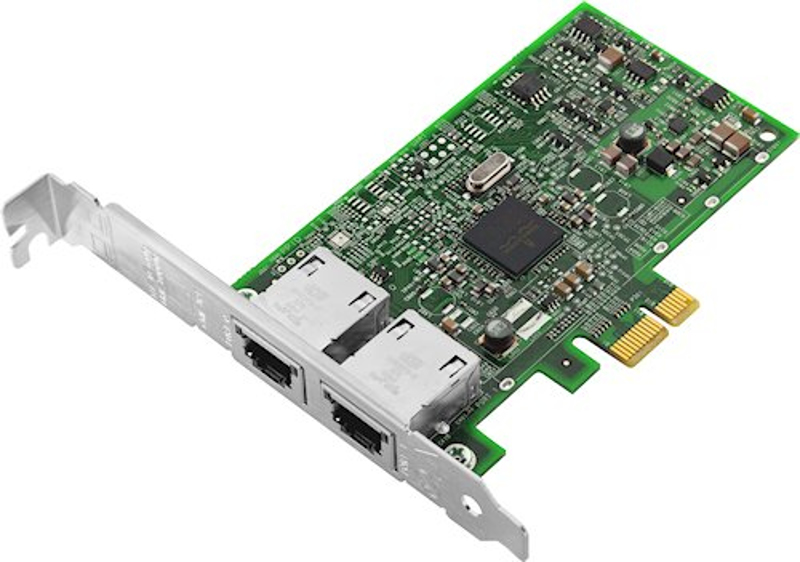

Lenovo AUZX Internal Wired PCI Express Ethernet
2x RJ45 - 1Gb - PCIe 2.0 - BCM5720
Brand: Lenovo
SKU: 7ZT7A00482
$179.88
Price as listed. Shipping charges calculated at checkout.
In stock
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Internal
Y
Connectivity technology
Wired
Host interface
PCI Express
Interface
Ethernet
Maximum data transfer rate
1000 Mbit/s
Product colour
Green
Lenovo AUZX. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s. Product color: Green
| Estimate Gross Weight | 0.214 |
|---|
https://lenovopress.com/tips0758-broadcom-netxtreme-gigabit-ethernet-adapters
The Broadcom NetXtreme Gigabit Ethernet Adapters are a family of high performance PCI Express adapters. The adapters are available with either two ports or four ports and are supported on ThinkSystem and System x servers.
This product guide provides essential presales information to understand the NetXtreme GbE offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
The Broadcom NetXtreme Gigabit Ethernet Adapters are a family of high performance PCI Express adapters. The adapters are available with either two ports or four ports and are supported on ThinkSystem and System x servers.
This product guide provides essential presales information to understand the NetXtreme GbE offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
- One, two, or four 10/100/1000 copper ports with RJ45 for Cat 5e/6 cabling
- TCP, IP, and UDP checksum offload
- Message Signaled Interrupts (MSI) and MSI-X support - Maximizes server processing performance by reducing CPU overhead and lowering interrupt latency
- On-chip temperature monitor (NetXteme I only)
- IEEE 802.3az Energy Efficient Ethernet (EEE) compliant - Reduces adapter power consumption by up to 42% through intelligent adaptive power management, adjusting power based on data traffic load. (NetXtreme I only)
- IEEE 802.3z (Clause 30) - Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (NetXtreme I only)
- IEEE 1588 Precision Time Control and 802.1AS time synchronization support - Provides greater accuracy of data packet delivery within the network (NetXtreme I only)
- Management using Broadcom Advanced Control Suite (BACS), Windows Management Instrumentation (WMI), and Broadcom Management API (BMAPI)
- Full line-rate performance across all ports
- Low-profile form factor - supported by the majority of System x and iDataPlex servers
- PCI Express 2.0 host interface (39Y6066 is PCI Express 1.1)
- Jumbo Frames support (9600 bytes frames)
- IEEE 802.1q VLAN support - provides enhanced network management and efficiency
- I/O virtualization (IOV) support for VMWare NetQueue and Microsoft VMQ - improves network performance in virtualized environments
- IEEE 802.3x flow control support
- Receive and transmit side scaling
