Rittal EL Three-Part - Skåp - Lämplig för väggmontage - RAL 7035 - 21U...
600 mm x 1012 mm x 473 mm - 325.00 dm³ - 49.69 kg - 21 U - IP55
Brand: Rittal
SKU: 7721135
$1,278.98
Price as listed. Shipping charges calculated at checkout.
Out of stock
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Type
Wall mounted rack
Maximum weight capacity
75 kg
Weight
49.7 kg
Rittal DK 7721.135. Type: Wall mounted rack, Maximum weight capacity: 75 kg. Weight: 49.7 kg
| Estimate Gross Weight | 49.0 |
|---|---|
| Estimate Gross Weight | 49.0 |
https://www.rittal.com/products/ArtikelDatenblatt.asp?sub=desc&Artnr=7721135&lang=GB&Dom=com

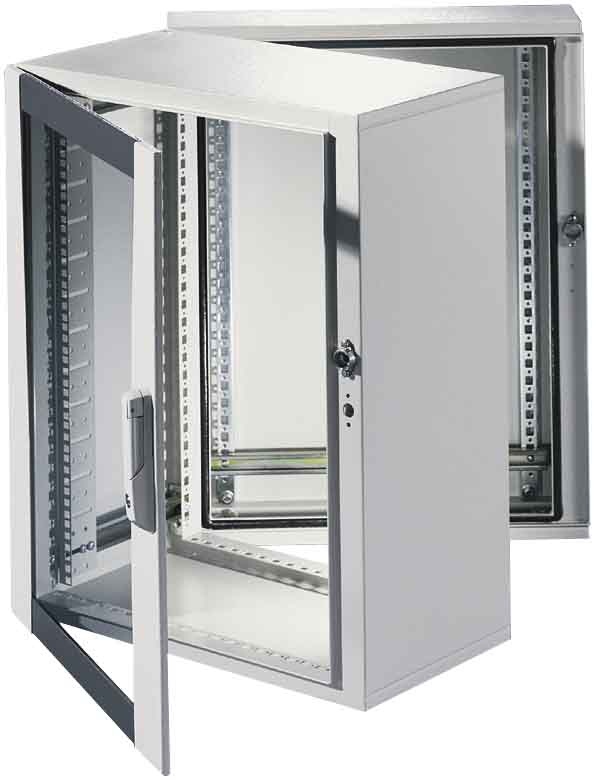

Pre-assembled wall-mounted distributor, 21 U
Enclosure:
Three-part wall-mounted distributor enclosure,
consisting of:
Wall-mounted unit with 2 vertical mounting rails and one horizontally mounted C rail for cable clamping, exchangeable top and bottom gland plates, solid, hinged part with two infinitely adjustable 482.6 mm (19") mounting angles, mounted on C rails, with all-round 25 mm punched profile in front and rear frames, glazed door design with mini comfort handle for lock inserts, with 3524E security lock that can be changed for mini comfort handle for semi-cylinder (option), locking system with 2-point locking, 4 x 10 mm wall-mounting brackets included.
Hinged part load capacity: 75 kg
Viewing window: 3 mm single-pane safety glass
Surface finish:
Electrophoretic dipcoat, spray finished, enclosure RAL 7035, glazed door RAL 7035/7015
Pre-assembled wall-mounted distributor, 21 U
Enclosure:
Three-part wall-mounted distributor enclosure,
consisting of:
Wall-mounted unit with 2 vertical mounting rails and one horizontally mounted C rail for cable clamping, exchangeable top and bottom gland plates, solid, hinged part with two infinitely adjustable 482.6 mm (19") mounting angles, mounted on C rails, with all-round 25 mm punched profile in front and rear frames, glazed door design with mini comfort handle for lock inserts, with 3524E security lock that can be changed for mini comfort handle for semi-cylinder (option), locking system with 2-point locking, 4 x 10 mm wall-mounting brackets included.
Hinged part load capacity: 75 kg
Viewing window: 3 mm single-pane safety glass
Surface finish:
Electrophoretic dipcoat, spray finished, enclosure RAL 7035, glazed door RAL 7035/7015
