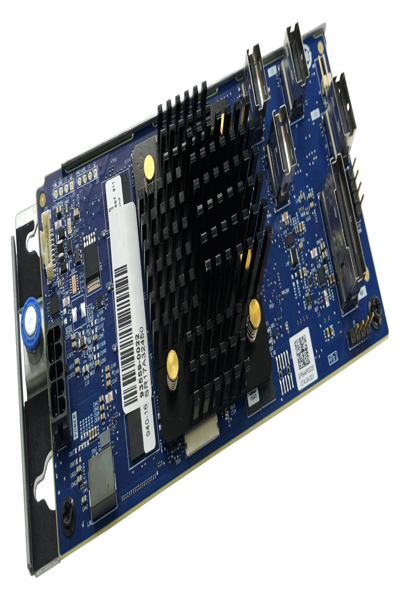

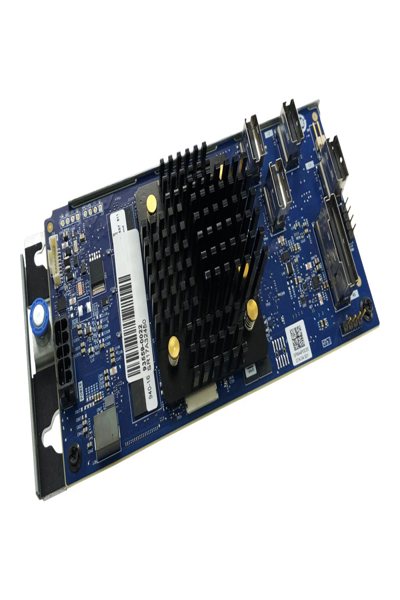

Lenovo ThinkSystem 940-16i RAID Internal Storage Controller
Lenovo ThinkSystem 940-16i - Storage controller (RAID) - 16 Channel - SATA / SAS 12Gb/s - RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - PCIe 4.0 x8 - for ThinkSystem SR630 V2; SR645; SR650 V2; SR665; ST650 V2
Brand: Lenovo
SKU: 4Y37A09735
$1,267.66
Price as listed. Shipping charges calculated at checkout.
Low stock — only 1 left
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Supported storage drive interfaces
SAS
Host interface
PCI Express x8
RAID levels
0,1,5,6,10,50,60,JBOD
Data transfer rate
12 Gbit/s
Internal memory
8000 MB
Compatible operating systems
Microsoft Windows Server 2016 Microsoft Windows Server 2019 Red Hat Enterprise Linux 8.1 SUSE Linux Enterprise Server 12 SP5 SUSE Linux Enterprise Server 12 SP5 with Xen SUSE Linux Enterprise Server 15 SP1 SUSE Linux Enterprise Server 15 SP1 with Xen VMware vSphere Hypervisor (ESXi) 6.7 U3 VMware vSphere Hypervisor (ESXi) 7.0
Lenovo ThinkSystem RAID 940-16i. Supported storage drive interfaces: SAS, Host interface: PCI Express x8. RAID levels: 0, 1, 5, 6, 10, 50, 60, JBOD, Data transfer rate: 12 Gbit/s, Internal memory: 8000 MB. Compatible operating systems: Microsoft Windows Server 2016 Microsoft Windows Server 2019 Red Hat Enterprise Linux 8.1 SUSE...
| Estimate Gross Weight | 0.5 |
|---|
https://www.lenovo.com/
The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.
The RAID 940 Series adapters all have a PCIe 4.0 host interface which doubles the bandwidth between the server and the adapter, compared to the previous generation RAID 930 adapters. This improves overall performance of the storage subsystem by supporting up to 3 million IOPS (JBOD mode) and up to 3 million IOPS in RAID (random reads).
RAID on Chip-based controllers such as the RAID 940 adapters have a dedicated processor that offloads all RAID functions from the server's CPU. With hardware acceleration for RAID 5 and 6 operations plus up to 8 GB dedicated memory for caching, the 940-8i, 16i and 32i offer the ultimate performance for ThinkSystem servers.
The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.
The RAID 940 Series adapters all have a PCIe 4.0 host interface which doubles the bandwidth between the server and the adapter, compared to the previous generation RAID 930 adapters. This improves overall performance of the storage subsystem by supporting up to 3 million IOPS (JBOD mode) and up to 3 million IOPS in RAID (random reads).
RAID on Chip-based controllers such as the RAID 940 adapters have a dedicated processor that offloads all RAID functions from the server's CPU. With hardware acceleration for RAID 5 and 6 operations plus up to 8 GB dedicated memory for caching, the 940-8i, 16i and 32i offer the ultimate performance for ThinkSystem servers.
